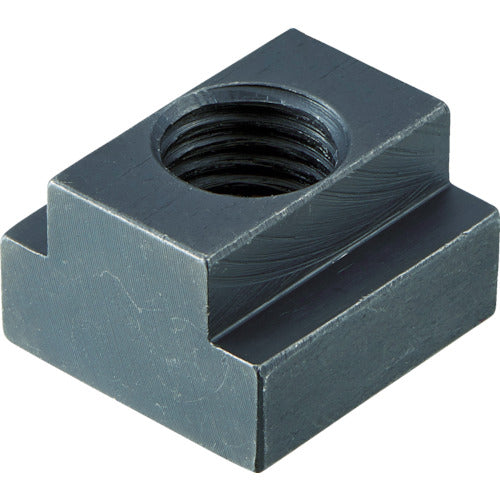

TRUSCO T-slot nut screw M10 T1410-TN 1 piece

Catalog number: T1410-TN Features: ●The screw hole does not penetrate through the nut, so it will not damage the T-slot. Applications: ●For fixing bolts for T-slots. ●For fixing bolts for T-slots on machine tools, radial drill presses, etc. Specifications: ●T-slot width (mm): 14 ●Compatible bolts: M10 ●Thread dimensions: M10 Material/Finish: ●Steel (S45C) ●Treatment: Hardening (HRC25-30), black dye finish Caution: ●Make sure the bolt is perpendicular to the machine table. ●Insert the bolt to the bottom of the nut. ●The hole is a through hole, but the bolt does not penetrate through the nut.
