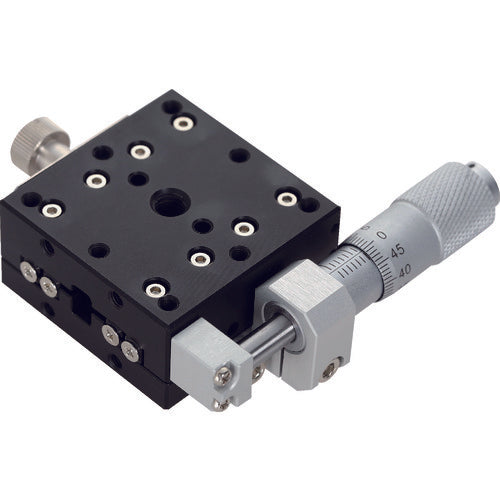

TRUSCO X-Stage Cross Roller 60X60 ECRX60 1 pc

Catalog number: ECRX60 Features: ● A stage that can be adjusted in 0.01 mm increments using a micrometer head. ● Can be widely used for precision positioning of cameras, sensors, workpieces, etc. Applications: ● For precision positioning of cameras, sensors, workpieces, etc. Specifications: ● Stage surface (mm): 60 x 60 ● Travel distance (mm): ±6.5 ● Travel accuracy straightness (μm): 30 ● Travel accuracy parallelism during movement (μm): 30 ● Horizontal load capacity (N): 49.0 ● Straightness (μm): 30 ● Parallelism during movement (μm): 30 ● Width (mm): 90 ● Depth (mm): 81 ● Thickness (mm): 20 ● Travel direction: X-axis direction ● Type: ● X-stage ● Cross roller ● Vertical load capacity (N): 19.6 ● Travel distance: ±6.5mm ● Type ● X-stage ● Cross roller ● Clamping method: Screw type ● Operation unit mounting position: Side ● Feed method: Micrometer head ● Travel guide: Cross roller ● Travel distance: ±6.5mm ● Travel distance / 1 rotation of knob: 0.5mm ● Graduation: Micrometer type 0.01mm ● Travel accuracy (m): Straightness 30μm, parallelism during movement 30μ Material/Finish: ●Table: Aluminum alloy ●Table surface treatment: Black anodized
