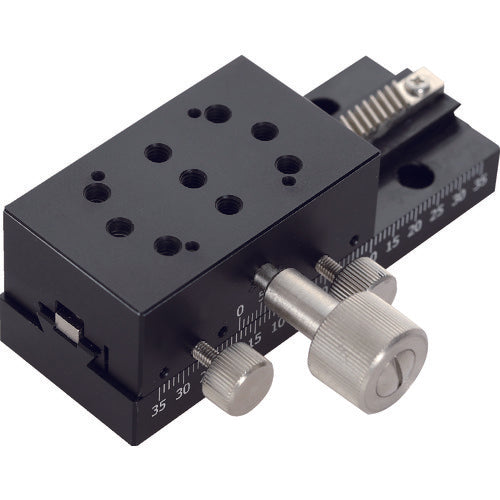

TRUSCO X-Stage Rack Pinion Long 30X50 Width 150mm ERPXL30150 1 pc

Catalog number: ERPXL30150 Features: ●Rack and pinion feed system provides a large travel distance. ●Long stroke rack and pinion stage. ●Can be used widely for positioning cameras, sensors, etc. Applications: ●For positioning cameras, sensors, workpieces, etc. Specifications: ● Stage surface (mm): 30 x 50 ● Travel distance (mm): ±65 ● Travel accuracy straightness (μm): 60 ● Travel accuracy parallelism during movement (μm): 60 ● Horizontal load capacity (N): 29.4 ● Straightness (μm): 50 ● Parallelism during movement (μm): 60 ● Width (mm): 150 ● Depth (mm): 40 ● Thickness (mm): 28 ● Travel direction: X-axis direction ● Type: ● X-stage ● Rack and pinion ● Vertical load capacity (N): 14.7 ● Type ● X-stage ● Rack and pinion ● Travel distance: ±65mm ● Clamping method: Screw type ● Operation unit mounting position: Side ● Travel mechanism / feed method: Rack and pinion type ● Travel guide: Dovetail groove ● Travel distance: ±65mm ● Travel distance / 1 knob rotation: 16.7mm ● Graduation: 0.1mm ● Travel accuracy (m): Straightness 60μm, parallelism during movement 60μ Material/Finish: ●Table: Aluminum alloy ●Table surface treatment: Black anodized
