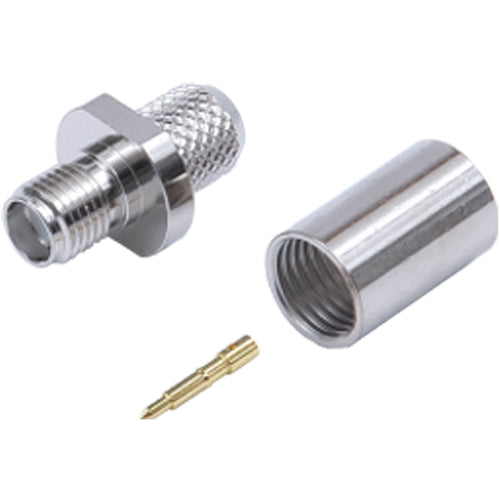

TYC Reverse Connector RP-SMAJ-3WA 1 piece

Catalog number: RP-SMAJ-3WA Features: ●Reverse connector. Applications: ●SMA straight jack compatible with 3D-2W cable. ●Reverse type, with male center contact. ●Cannot be mated with normal SMA connectors. ●Center contact is solder type, main body is crimp type. ●Installation requires crimping tool TA-34. Specifications: ●Connector shape: Reverse connector ●Installation method: Center: Solder/External: Crimp ●Compatible wire: 3D-2W ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 750V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Crimping tool: TA-34 Material/Finish: ●Center contact: Brass/Gold plated/Soldered External contact: Brass/Nickel plated/Crimped
