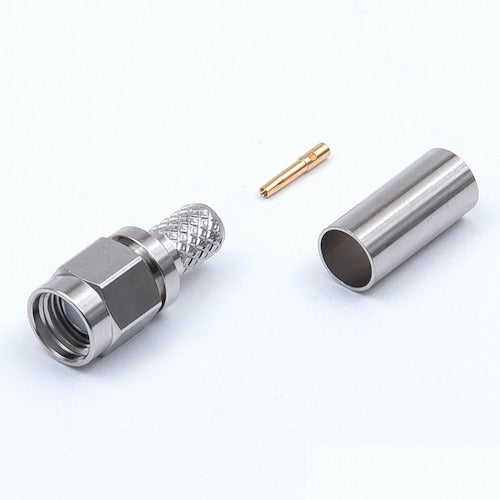

TYC Reverse Connector RP-SMAP-3A 1 piece

Catalog number: RP-SMAP-3A Features: ●Reverse connector. Applications: ●SMA straight plug compatible with 3D-2V and EM-3D-2E cables. ●Reverse type, with female center contact. ●Cannot be mated with normal SMA connectors. ●Center contact is solder type, main body is crimp type. ●Crimping tool TA-34 or TA-35 is required for installation. Specifications: Connector type: Reverse connector Installation method: Center: Solder/External: Crimping Compatible wires: 3D-2V/EM-3D-2E Characteristic impedance: 50Ω Rated voltage AC: Operating frequency range: 6GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 750V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.3 or less (0.5 to 5.5GHz) Operating temperature range: -40 to +85°C Crimping tool: TA-34, TA-35 Material/Finish: Center contact: Beryllium copper/gold plating/soldering External contact: Brass/nickel plating/crimping
