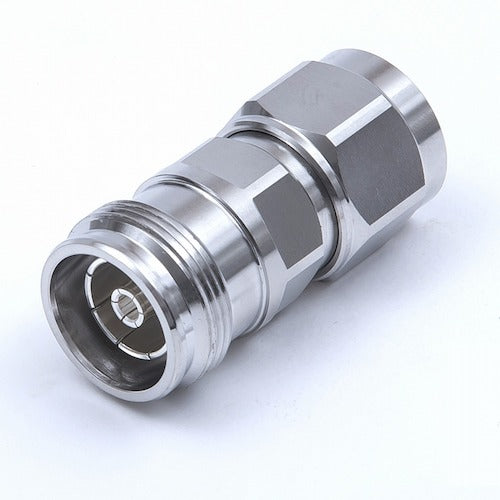

TYC conversion connector 4.3/10-N 4.3/10J-NP 1 piece

Catalog number: 4.3/10J-NP Features: ●Conversion connector. ●4.3/10-N. Applications: ●Conversion connector with 4.3/10 type jack and N type plug. ●Used to join different types of connectors. ●Body is ternary plated brass. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 6GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1kV at 50Hz for 1 minute Contact resistance: 1mΩ or less (4.3/10), 1.5mΩ or less (N) Voltage standing wave ratio: 1.2 or less (DC to 6GHz) Operating temperature range: -40 to +85℃ Material/Finish: ●Center contact: Beryllium copper/silver plating External contact: Phosphor bronze, brass/silver plating, ternary plating
