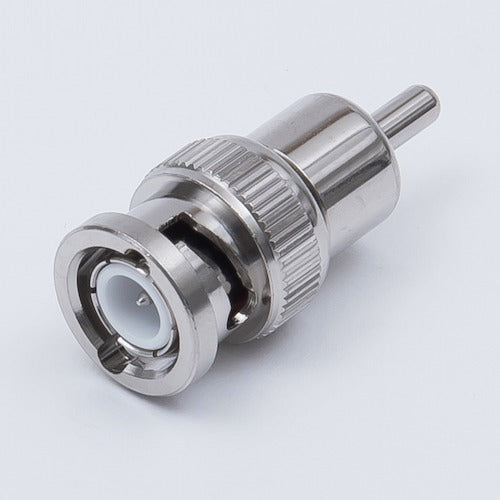

TYC conversion connector BNC-RCA BNCP-RCAP 1 piece

Catalog number: BNCP-RCAP Features: ●Conversion connector. Applications: ●Conversion connector with BNC plug and RCA plug. ●Used to join different types of connectors. ●Body is nickel-plated brass. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: Mismatched Rated voltage AC: AC 500V Operating frequency range: Insulation resistance: 100MΩ or more at DC 500V Withstand voltage: AC 500V for 1 minute Contact resistance: 5mΩ or less Voltage standing wave ratio: 1.4 or less (DC to 150MHz) Operating temperature range: -20 to +60°C Material/Finish: ●Center contact: Brass/nickel-plated Outer contact: Brass/nickel-plated
