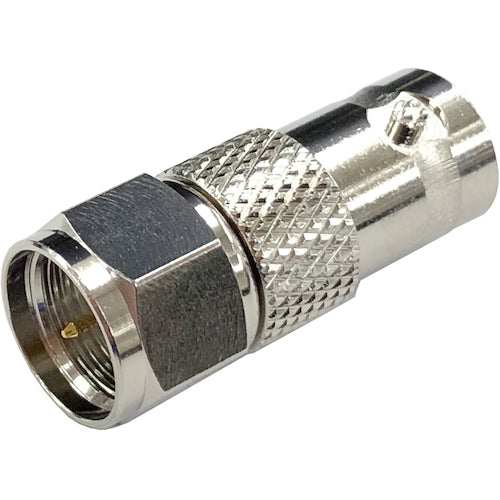

TYC Conversion Connector F-BNC FP-BNCCJ-75 1 piece

Catalog number: FP-BNCCJ-75 Features: ●Conversion connector. Applications: ●Conversion connector with F-type plug and BNC 75Ω type jack. ●Used to join different types of connectors. ●The main body is nickel-plated brass. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: 75Ω Rated voltage AC: AC 500V Operating frequency range: Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 1.5mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Material/Finish: ●Center contact: Phosphor bronze/gold plated External contact: Brass/nickel plated
