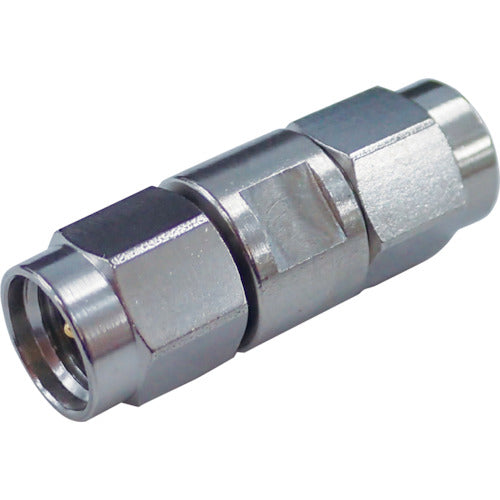

TYC conversion connector K292-SMA K292P-SMAP 1 piece

Catalog number: K292P-SMAP Features: ●Conversion connector. Applications: ●Conversion connector between 2.92mm K connector plug and SMA plug, with mating compatibility with SMA connectors and 3.5mm. ●The main body is stainless steel with passivation treatment. ●Supports up to 26.5GHz. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 26.5GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.25 or less (DC to 26.5GHz) Operating temperature range: Material/Finish: ●Center contact: Beryllium copper/gold plating External contact: Stainless steel/passivation treatment
