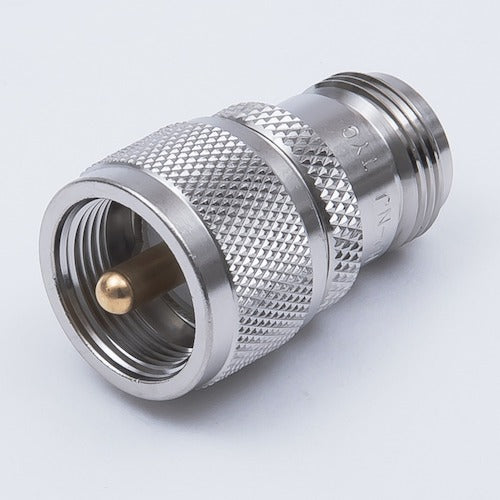

TYC conversion connector M-N MP-NJ 1 piece

Catalog number: MP-NJ Features: ●Conversion connector. Applications: ●Conversion connector with M-type plug and N-type jack. ●Used to join different types of connectors. ●Body is nickel-plated brass. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: Mismatched Rated voltage AC: AC 500V Operating frequency range: Insulation resistance: 100MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Material/Finish: ●Center contact: Phosphor bronze/gold plated Outer contact: Brass/nickel plated
