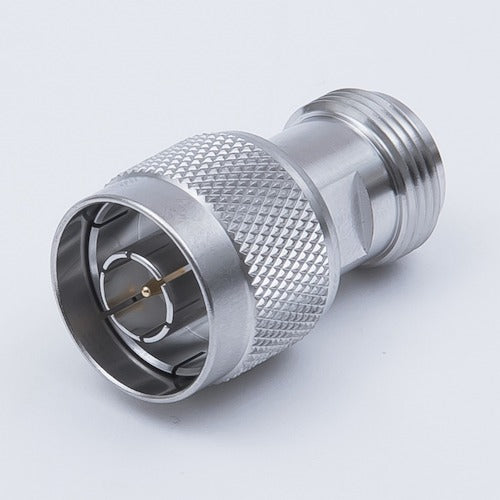

TYC Measurement Quick Adapter N-QA-JP 1 pc

Catalog number: N-QA-JP Features: ●Quick adapter for measurement. Applications: ●N-type relay adapter used for measurement. ●Main body is ternary plated brass. ●Plug-jack type, one-touch mating by simply inserting the plug side. Specifications: ●Connector shape: Quick adapter for measurement ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 18GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 18GHz) Operating temperature range: -40 to +85℃ Material/Finish: ●Center contact: Beryllium copper/gold plating External contact: Brass/ternary plating
