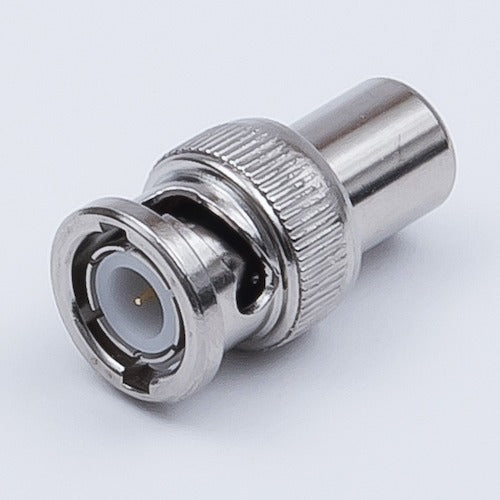

TYC terminator BNC-TD 50OHM 1 piece

Catalog number: BNC-TD 50OHM Features: ●Terminator. Applications: ●BNC type non-reflective terminator (termination). ●The mating part is a plug, and is mainly used to fill the receptacle of equipment. ●Characteristic impedance is 50Ω. ●Supports power up to 0.5W. ●Voltage standing wave ratio (VSWR) is 1.2 or less (DC to 500MHz) Specifications: ●Connector shape: Terminator ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 0.5GHz Insulation resistance: Withstand voltage: Contact resistance: Voltage standing wave ratio: 1.2 or less (DC to 500MHz) Operating temperature range: Rated power (W): 0.5W Material/Finish: ●Center contact: Brass/gold plated Outer contact: Brass/nickel plated
