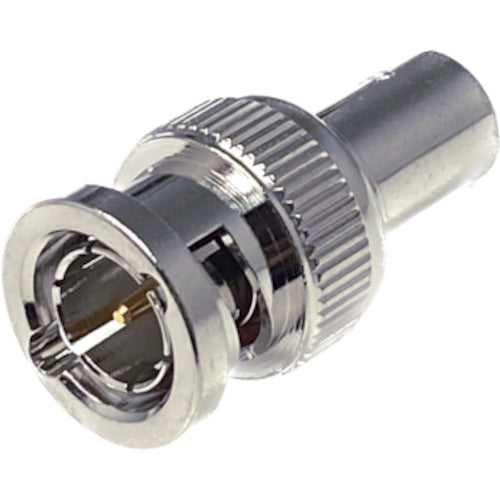

TYC terminator BNCP75TD1G-1W 1 piece

Catalog number: BNCP75TD1G-1W Features: ●Terminator. Applications: ●BNC type non-reflective terminator (termination). ●The mating part is a plug, and is mainly used to fill the receptacle of equipment. ●Characteristic impedance is 75 Ω. ●Supports power up to 1 W. ●Voltage standing wave ratio (VSWR) is 1.2 or less (DC to 600 MHz), 1.5 or less (600 MHz to 1 GHz) Specifications: ●Characteristic impedance: 75 Ω ●Rated voltage: AC 500 V ●Frequency range: 1 GHz ●Voltage standing wave ratio: 1.2 or less (DC to 600 MHz), 1.5 or less (600 MHz to 1 GHz) ●Rated power (W): 1 W Material/Finish: ●Center contact: Brass/gold plated ●External contact: Brass/nickel plated
