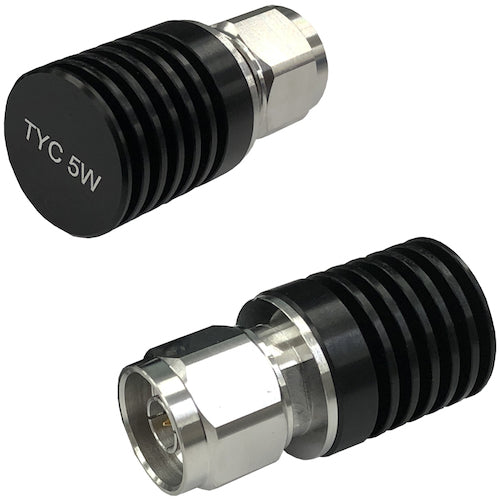

TYC terminator NP50TD6G-5W 1 piece

Catalog number: NP50TD6G-5W Features: ●Terminator. Applications: ●High-power type N-type non-reflective terminator (termination) with heat sink. ●The mating part is a plug, and is mainly used to fill the receptacle of the equipment. ●IPX7 waterproof specification, suitable for various applications from wireless to mobile base station components and absorbing dummy loads of transmitters. ●High-performance product that supports large-capacity power up to 5W and covers frequencies from DC to 6GHz. ●Voltage standing wave ratio (VSWR) is 1.25 or less (DC to 6GHz). Specifications: ●Connector shape: Terminator ●Characteristic impedance: 50Ω Rated voltage AC: Operating frequency range: 6GHz Insulation resistance: Withstand voltage: Contact resistance: Voltage standing wave ratio: 1.25 or less (DC to 6GHz) Operating temperature range: -45 to +85℃ Rated power (W): 5W Material/Finish: ●Center contact: Phosphor bronze/gold plating External contact: Brass/ternary plating
