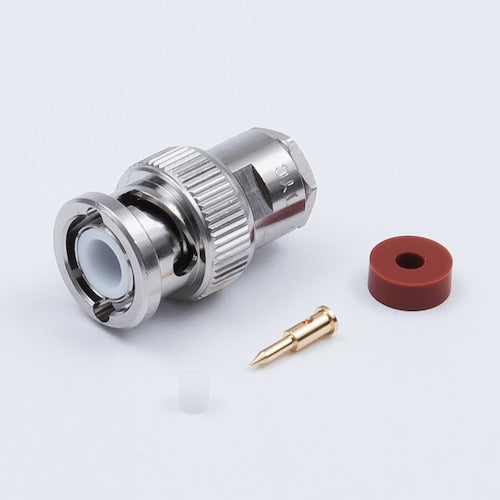

TYC BNC Connector Straight Plug BNCP-1.5 1 pc

Catalog number: BNCP-1.5 Features: ● Straight plug of BNC connector. Applications: ● BNC type straight plug compatible with 1.5D-2V, 1.5C-2V, 1.5D-QEV, EM-1.5D-2E cables, etc. ● Can be used with 75Ω cables up to 200MHz. ● The main body is a clamping type, and the robustness of the cable connection is high. ● The center contact is a solder type. Specifications: Connector type: BNC connector Installation method: Center: soldering/External: clamping Compatible wires: 1.5D-2V/1.5C-2V/1.5C-2V・S/1.5C-XVS/1.5D-QEV/EM-1.5D-2E/EM-1.5C-2E Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 4GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 1000MHz) Operating temperature range: -40 to +85℃ Material/Finish: Center contact: Brass/gold plating/soldering External contact: Brass/nickel plating/clamping
