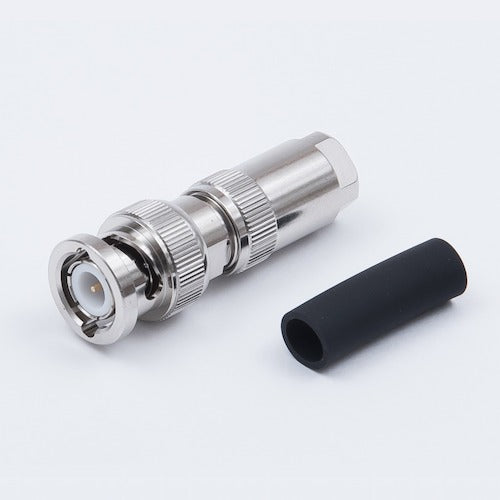

TYC BNC connector straight plug BNCP-117NA 1 piece

Catalog number: BNCP-117NA Features: ● Straight plug of BNC connector. Applications: ● BNC type straight plug compatible with 3D-2V, 3C-FB, 5D-2V, EM-5C-2E cables, etc. ● A feature is that it is compatible with a wide range of cables, but compared to other connectors that are compatible with each cable, the characteristics are slightly inferior. ● It can also be used with 75Ω cables as long as they are 200MHz or less. ● Both the center contact and the main body are solder types. Specifications: Connector type: BNC connector Installation method: Center: solder / External: solder + tightening Compatible wires: 3D-2V/3C-2V/3C-2V・S/3C-FB/5D-2V/5C-2V/5C-2V・S/5C-FB/S-5C-FB/EM-3D-2E/EM-3C-2E/EM-5D-2E/EM-5C-2E Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 4GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85℃ Material/Finish: Center contact: Brass/gold plated/soldered External contact: Brass/nickel plated/soldered + tightening
