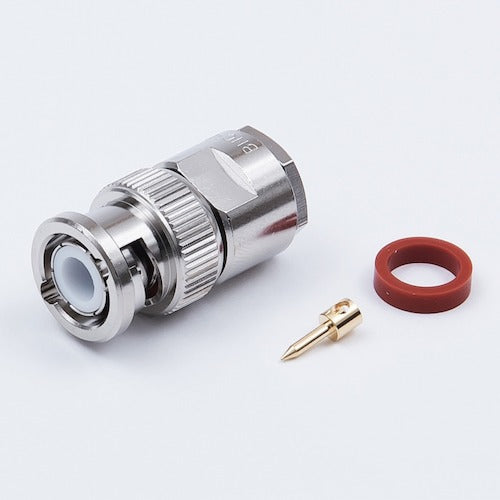

TYC BNC connector straight plug BNCP-5DFB 1 piece

Catalog number: BNCP-5DFB Features: ● Straight plug of BNC connector. Applications: ● BNC type straight plug compatible with 5D-FB, 5D-FV, 5D-FB-LITE cables. ● The main body is a clamping type, and the robustness of the cable connection is high. ● The center contact is a solder type. Specifications: ● Connector shape: BNC connector ● Installation method: Center: solder / External: clamping ● Compatible wire: 5D-FB / 5D-FV / 5D-FB-LITE ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 4GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85℃ Material / Finish: ● Center contact: Brass / gold plating / soldering External contact: Brass / nickel plating / clamping
