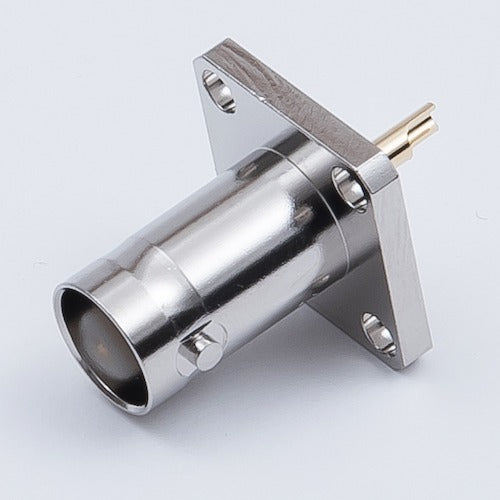

TYC BNC connector receptacle BNC-R 1 piece

Catalog number: BNC-R Features: ●BNC connector receptacle. Applications: ●Panel-mount type BNC receptacle. ●Body is nickel-plated brass. ●Terminal shape is solder type. Specifications: ●Connector shape: BNC connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 4GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Terminal shape: Solder Material/Finish: ●Center contact: Phosphor bronze/gold plating External contact: Brass/nickel plating
