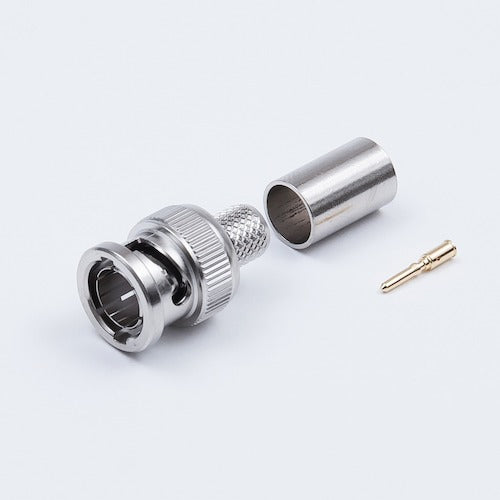

TYC BNC 75Ω Connector Straight Plug BNCP-5FSA 1 piece

Catalog number: BNCP-5FSA Features: ● Straight plug of BNC 75Ω connector. Applications: ● BNC 75Ω type straight plug compatible with 5C-FB, S-5C-FB, 5C-FV, EM-S-5C-FB cables. ● Both the center contact and the main body are crimp type, making them easy to process and inexpensive. ● Crimping tool TA-35 is required for installation. Specifications: Connector shape: BNC 75Ω connector Installation method: Center: Crimping/External: Crimping Compatible wires: 5C-FB/S-5C-FB/5C-FV/EM-S-5C-FB Characteristic impedance: 75Ω Rated voltage AC: AC 500V Operating frequency range: 2.4GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (0.3 to 1000MHz) Operating temperature range: -40 to +85℃ Crimping tool: TA-35 Material/Finish: Center contact: Brass/gold plated/crimping External contact: Brass/nickel plated/crimping
