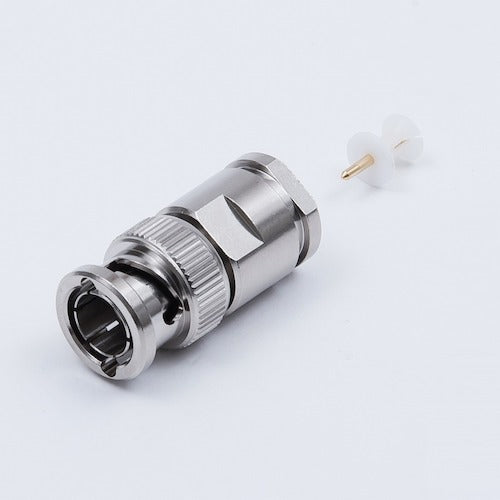

TYC BNC 75Ω Connector Straight Plug BNCP-5SPN 1 piece

Catalog number: BNCP-5SPN Features: ●BNC 75Ω connector straight plug. Applications: ●BNC 75Ω straight plug compatible with 5C-FB, S-5C-FB, and 5C-2V cables. ●One-touch tightening type, no crimping tools or soldering required. ●For detailed installation instructions, please refer to the installation specifications. Specifications: Connector type: BNC 75Ω connector Installation method: Center: tightening/External: tightening Compatible wires: 5C-FB/S-5C-FB/5C-2V Characteristic impedance: 75Ω Rated voltage AC: AC 500V Operating frequency range: 3GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (0.3 to 3000MHz (5C-FB●S-5C-FB))●(0.3 to 1000MHz (5C-2V)) Operating temperature range: -40 to +85°C Material/Finish: Center contact: Brass/gold plated/tightening External contact: Brass/nickel plated/tightening
