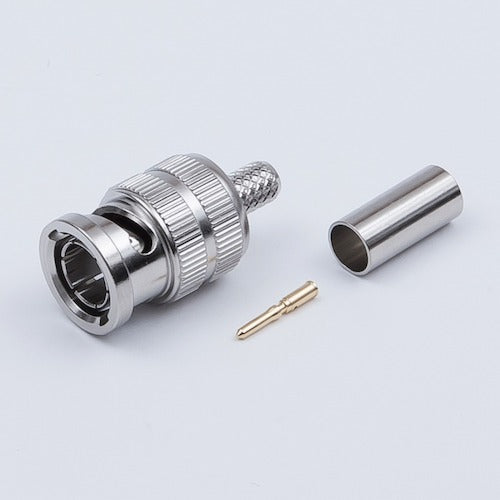

TYC BNC 75Ω Connector Straight Plug BP-3CV 1 pc

Catalog number: BP-3CV Features: ● Straight plug of BNC 75Ω connector. Applications: ● BNC 75Ω type straight plug compatible with 3C-2V cable. ● Connector compatible with 3G-SDI, transmits twice the transmission capacity of current HD-SDI signals using one coaxial cable. ● Both the center contact and the main body are crimp type, making them easy to process and inexpensive. ● Crimping tool P-741 or TC-35CA is required for installation. Specifications: ● Connector shape: BNC 75Ω connector ● Installation method: Center: Crimping / External: Crimping ● Compatible wire: 3C-2V ● Characteristic impedance: 75Ω Rated voltage AC: AC 500V Operating frequency range: Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.1 or less (DC to 3200MHz ● Fujikura) ● 1.15 or less (DC to 3200MHz ● Kansai Telecommunications Cable) ● 1.2 or less (DC to 3200MHz ● Shikoku Electric Wire) Operating temperature range: -40 to +85°C Crimping tool: TC-35CA ● P-741 Material/Finish: ● Center contact: Brass / Gold plated / Crimping External contact: Brass / Nickel plated / Crimping
