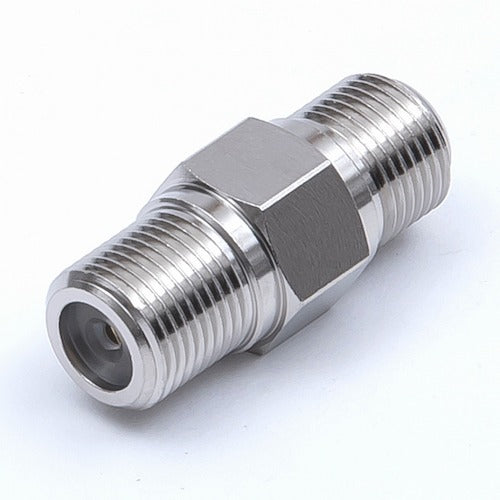

TYC F connector adapter FA-JJC 1 piece

Catalog number: FA-JJC Features: ●F connector adapter. Applications: ●F(15) type relay adapter. ●Body is nickel-plated brass. ●Jack-jack type. ●Can also be used to convert the mating part from plug to jack. ●※F(15): Complies with the technical standards of the Japan Electronics and Information Technology Industries Association and can be mated with normal F type. ●Similar names: FJ-FJ. Specifications: ●Connector shape: F connector ●Characteristic impedance: 75Ω Rated voltage AC: AC 150V Operating frequency range: 3224MHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 500V for 1 minute Contact resistance: 5mΩ or less Voltage standing wave ratio: 1.2 or less (0.3 to 3000MHz) Operating temperature range: -40 to +85℃ Material/Finish: ●Center contact: Phosphor bronze/gold plating External contact: Brass/nickel plating
