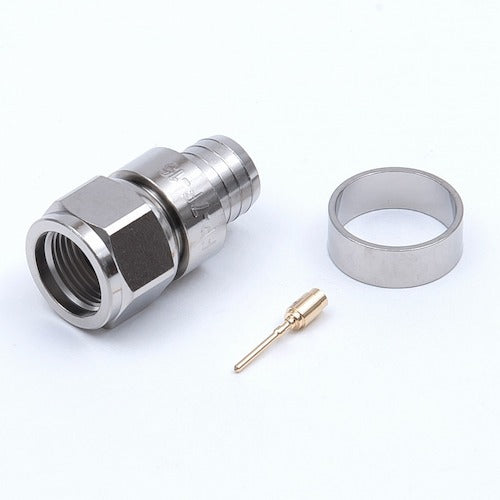

TYC F connector straight plug FP-7F-15 1 piece

Catalog number: FP-7F-15 Features: ● Straight plug of F connector. Applications: ● Straight plug of F(15) type that fits 7C-FB and S-7C-FB cables. ● Both the center contact and the main body are crimp type, making it easy to process. ● Crimping tool #1064ND-357 (made by JEFCOM), MH-7C (made by Marvel), or P-716 (made by HOZAN) is required for installation. ● *F(15): Complies with the technical standards of the Japan Electronics and Information Technology Industries Association and can be mated with normal F type. Specifications: ● Connector shape: F connector ● Installation method: Center: Crimped / External: Crimped ● Compatible wire: 7C-FB/S-7C-FB ● Characteristic impedance: 75Ω Rated voltage AC: AC 150V Operating frequency range: 2700MHz or less Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 500V for 1 minute Contact resistance: 5mΩ or less Voltage standing wave ratio: 1.2 or less (0.3MHz to 2600MHz) Operating temperature range: -40 to +85°C Material/Finish: ● Center contact: Brass/gold plated/crimped External contact: Brass/nickel plated/crimped
