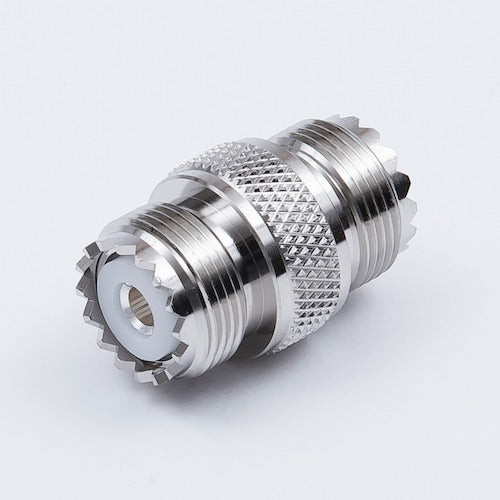

TYC M connector adapter MA-JJ-19 1 piece

Catalog number: MA-JJ-19 Features: ● M connector adapter. Applications: ● M-type relay adapter. ● Body is nickel-plated brass. ● Jack-jack type. ● Fleur-de-lis knurling makes it easy to mate. ● Can also be used to convert mating parts from plugs to jacks. Specifications: ● Connector shape: M connector ● Characteristic impedance: Mismatched Rated voltage AC: AC 500V Operating frequency range: 200MHz Insulation resistance: 100MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Material/Finish: ● Center contact: Brass/silver-plated Outer contact: Brass/nickel-plated
