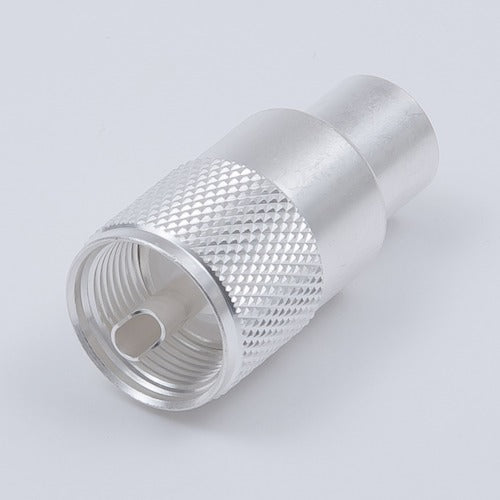

TYC M connector straight plug MP-7 1 piece

Catalog number: MP-7 Features: ● M connector straight plug. Applications: ● M type straight plug compatible with 7C-2V, 7C-FB, S-7C-FB, RG-8/U, RG-11/U, RG-11A/U, EM-7C-2E cables. ● Often used in frequency bands below 200 MHz. ● Both the center contact and the main body are solder types. Specifications: ● Connector shape: M connector ● Installation method: Center: solder / External: solder ● Compatible wires: 7C-2V 7C-FB S-7C-FB RG-8/U RG-11/U RG-11A/U EM-7C-2E ● Characteristic impedance: Mismatched Rated voltage AC: AC 500V Operating frequency range: 200MHz Insulation resistance: 100MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Material/Finish: ● Center contact: Brass/silver plated/soldered External contact: Brass/silver plated/soldered
