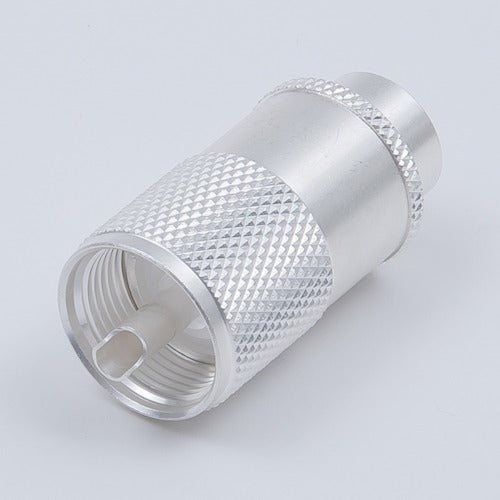

TYC M connector straight plug MP-8 1 piece

Catalog number: MP-8 Features: ● Straight plug of M connector. Applications: ● M-type straight plug compatible with 8D-2V, 8D-FB, 8D-FV, EM-8D-2E, 8D-FB-LITE cables. ● Often used in frequency bands below 200 MHz. ● Both the center contact and the main body are solder types. Specifications: ● Connector shape: M connector ● Installation method: Center: solder / External: solder ● Compatible wires: 8D-2V / 8D-FB / 8D-FV / EM-8D-2E / 8D-FB-LITE ● Characteristic impedance: Mismatched Rated voltage AC: AC 500V Operating frequency range: 200MHz Insulation resistance: 100MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Material / Finish: ● Center contact: Brass / silver plated / soldered External contact: Brass / silver plated / soldered
