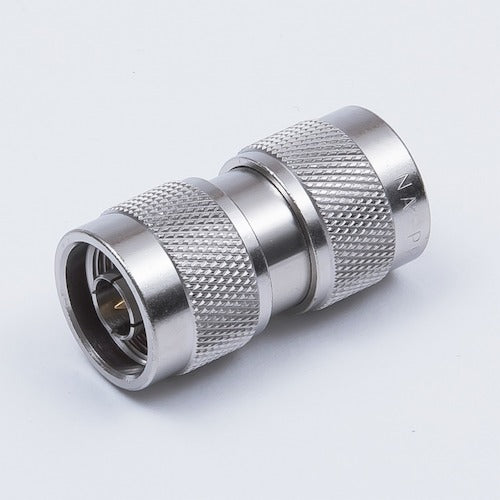

TYC N connector adapter NA-PP 1 piece

Catalog number: NA-PP Features: ● N connector adapter. Applications: ● N-type relay adapter. ● Body is nickel-plated brass. ● Plug-plug type. ● Not compatible with 75Ω specifications. ● Similar name: NP-NP. Specifications: ● Connector shape: N connector ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 10GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 3GHz) Operating temperature range: -40 to +85°C Material/Finish: ● Center contact: Brass/gold plated Outer contact: Brass/nickel plated
