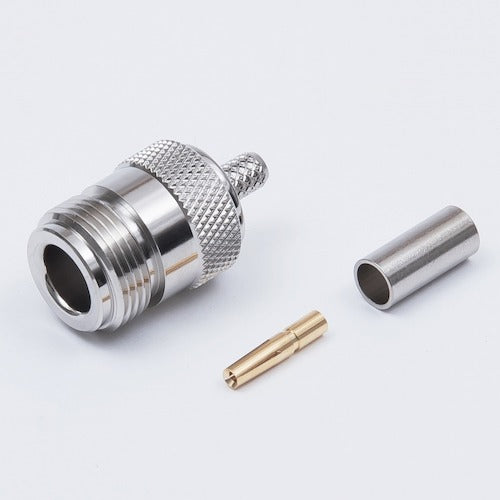

TYC N connector straight jack NJ-58A 1 piece

Catalog number: NJ-58A Features: ● N connector straight jack. Applications: ● N type straight jack compatible with RG-58/U, RG-58A/U cables. ● The main body is a crimp type, making it easy to process and inexpensive. ● The center contact is a solder type. ● Crimping tool TA-34 or TA-35 is required for installation. Specifications: Connector type: N connector Installation method: Center: solder/External: crimping Compatible wires: RG-58/U RG-58A/U Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 10GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Crimping tool: TA-34, TA-35 Material/Finish: Center contact: Phosphor bronze/gold plating/soldering External contact: Brass/nickel plating/crimping
