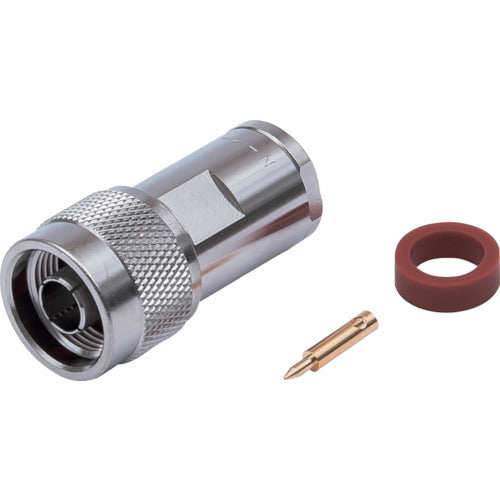

TYC N connector straight plug NP-8/U 1 piece

Catalog number: NP-8/U Features: ● Straight plug of N connector. Applications: ● N-type straight plug compatible with RG-8/U, RG-11/U, RG-214/U, and 6D-FBW cables. ● The main body is a clamping type, which increases the robustness of the connection. ● The center contact is a soldering type. Specifications: ● Connector shape: N connector ● Installation method: Center: Crimping / External: Clamping ● Compatible wire: RG-8/U RG-11/U RG-214/U 6D-FBW ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 10GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85℃ Material/Finish: ● Center contact: Brass, gold plated, soldered
