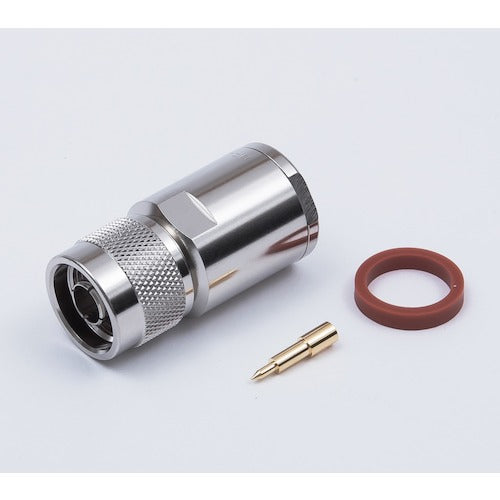

TYC N connector straight plug NP-H-10DFB 1 piece

Catalog number: NP-H-10DFB Features: ● Straight plug of N connector. Applications: ● N-type straight plug compatible with 10D-FB, 10D-FBE, EM-10D-FB, 10D-FB-LITE cables, etc. ● The main body is a tightening type, and the connection is highly robust. ● The center contact is a solder type. ● When using 10D-FBE and EM-10D-FB, a dedicated flare tool is required. ● Similar name: NP-10DFB. Specifications: ● Connector shape: N connector ● Installation method: Center: Crimping / External: Clamping ● Compatible wires: 10D-FB/10D-FBE/EM-10D-FB/10D-FB-LITE ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 10GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 6GHz) Operating temperature range: -40 to +85℃ Material/Finish: ● Center contact: Brass/gold plating/soldering External contact: Brass/nickel plating/clamping
