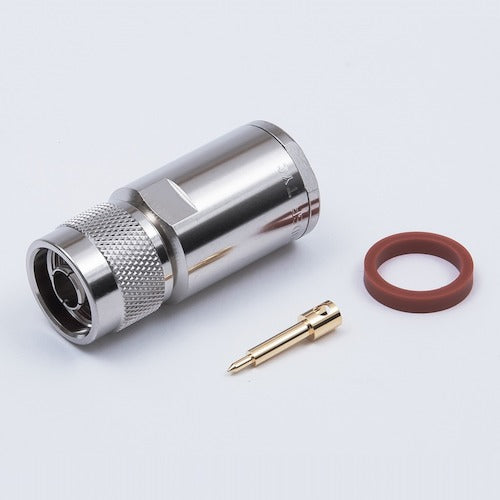

TYC N connector straight plug NP-H-10DSF 1 piece

Catalog number: NP-H-10DSF Features: ● Straight plug for N connector. Applications: ● N-type straight plug compatible with 10D-SFA, 10D-SFA-LITE, 10D-SFAE cables, etc. ● The main body is a tightening type, which increases the robustness of the connection. ● The center contact is a solder type. ● When using 10D-SFAE, a dedicated flare tool is required. ● Similar name: NP-10DSF. Specifications: ● Connector shape: N connector ● Installation method: Center: Crimping / External: Clamping ● Compatible wires: 10D-SFA / 10D-SFA-LITE / 10D-SFAE ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 10GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 6GHz) Operating temperature range: -15 to +60°C Material / Finish: ● Center contact: Brass / Gold plating / Soldering External contact: Brass / Nickel plating / Clamping
