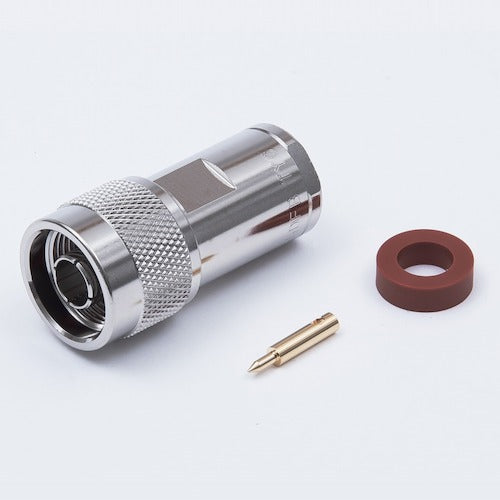

TYC N connector straight plug NP-H-5DFB 1 piece

Catalog number: NP-H-5DFB Features: ● Straight plug of N connector. Applications: ● N-type straight plug compatible with 5D-FB, EM-5D-FB, 5D-FB-LITE cables, etc. ● The main body is a tightening type, and the connection is highly robust. ● The center contact is a solder type. ● When using EM-5D-FB, a dedicated flare tool is required. ● Similar name: NP-5DFB. Specifications: ● Connector shape: N connector ● Installation method: Center: Crimping / External: Clamping ● Compatible wires: 5D-FB/EM-5D-FB/5D-FB-LITE ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 10GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 6GHz) Operating temperature range: -40 to +85℃ Material/Finish: ● Center contact: Brass/gold plating/soldering External contact: Brass/nickel plating/clamping
