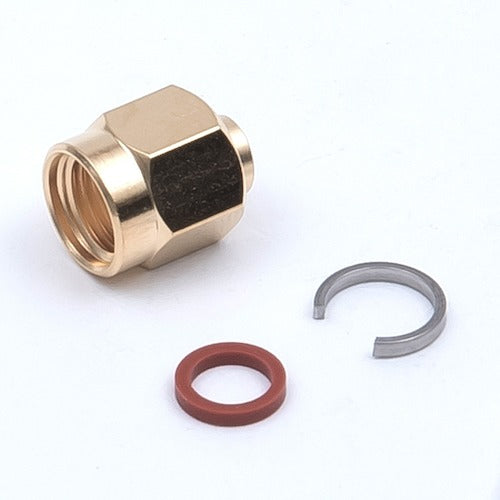

TYC SMA connector straight plug SMAP-402S(AU) 1 piece

Catalog number: SMAP-402S(AU) Features: ●Straight plug of SMA connector. Applications: ●Straight SMA plug for semi-rigid cable. ●Compatible with 0.141 Semi-Rigid, RG-402/U cable. ●Uses the central conductor of the cable as a contact. ●The body is gold-plated stainless steel, and has better characteristics than SMAP-141SP. Specifications: Connector type: SMA connector Installation method: External: Solder Compatible wire: 0.141Semi-Rigid RG-402/U Characteristic impedance: 50Ω Rated voltage AC: AC 330V Operating frequency range: 18GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.05+0.01F (F:GHz) or less (100MHz to 18GHz) Operating temperature range: -40 to +85℃ Material/Finish: Center contact: External contact: Stainless steel/gold plating/soldering
