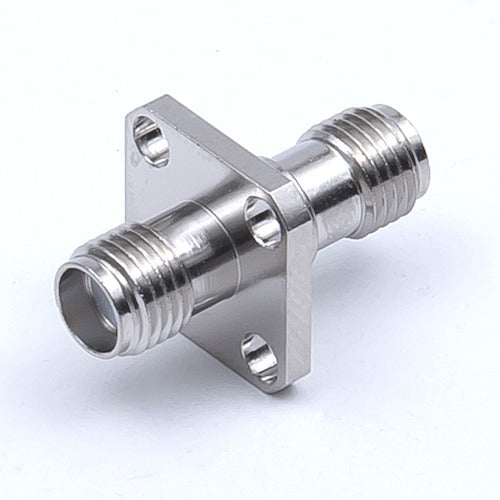

TYC SMA Connector Panel Adapter SMA-PA-JJ(NI) 1 piece

Catalog number: SMA-PA-JJ(NI) Features: ●Panel adapter for SMA connector. Applications: ●Panel-mount type SMA relay adapter. ●Body is nickel-plated brass. ●Jack-jack type. Specifications: ●Connector shape: SMA connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 18GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (0.05 to 18GHz) Operating temperature range: -40 to +85°C Material/Finish: ●Center contact: Beryllium copper/gold plating External contact: Brass/nickel plating
