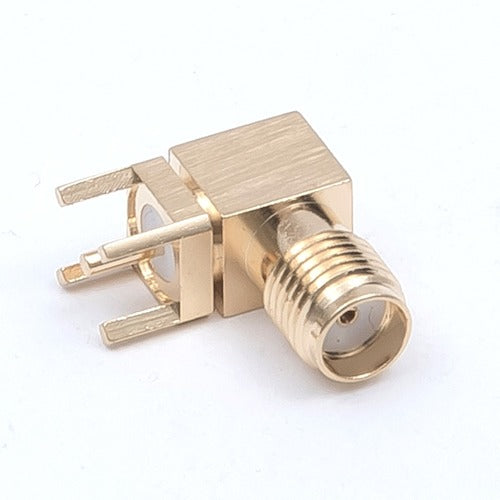

TYC SMA Connector Receptacle for Printed Circuit Boards SMA-LR4T2 1 pc

Catalog number: SMA-LR4T2 Features: ●Receptacle for SMA connector printed circuit boards. Applications: ●Receptacle for SMA printed circuit boards. ●Body is gold-plated brass. ●Shape is L-bend (L-shaped, right angle) type. ●It will be on sale from late June as a successor to the SMA-LR4T with the same dimensions and specifications. Specifications: ●Connector shape: SMA connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 12.4GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 12.4GHz) Operating temperature range: -40 to +85℃ Material/Finish: ●Center contact: Beryllium copper/gold plating External contact: Brass/gold plating
