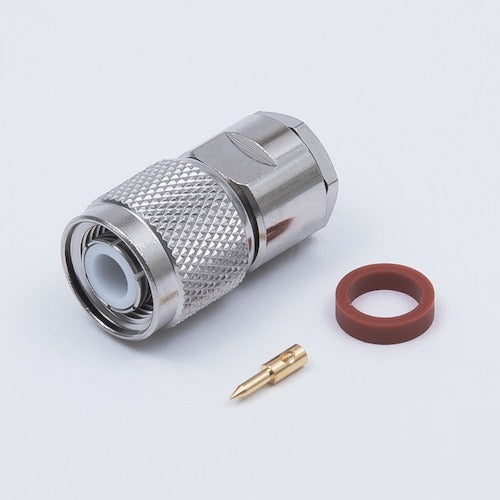

TYC TNC Connector Straight Plug TNCP-5 1 pc

Catalog number: TNCP-5 Features: ● Straight plug of TNC connector. Applications: ● TNC type straight plug compatible with 5D-2V, 5C-2V, 5C-FB, S-5C-FB, EM-5D-2E cables, etc. ● The main body is a tightening type, and the connection is highly robust. ● The center contact is a solder type. Specifications: ● Connector shape: TNC connector ● Installation method: Center: soldering / External: clamping ● Compatible wires: 5D-2V/5C-2V/5C-FB/S-5C-FB/EM-5D-2E/EM-5C-2E/EM-5C-FB/EM-S-5C-FB ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 4GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85℃ Material/Finish: ● Center contact: Brass/gold plating/soldering External contact: Brass/nickel plating/clamping
