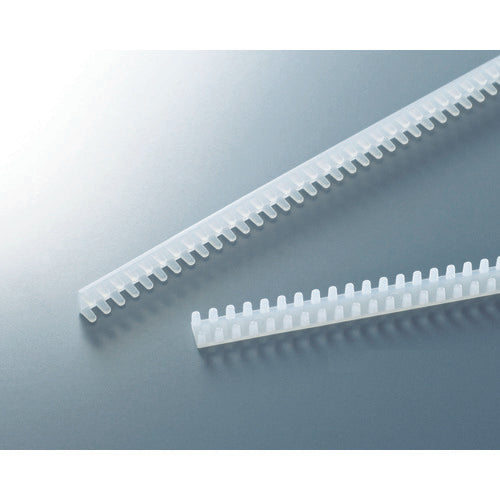

TYTON Flexible bushing, suitable for panel thickness 1.2mm (100 pieces) TG-012 1 bag

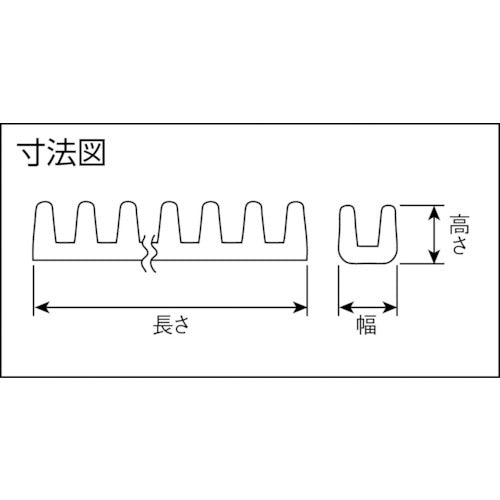

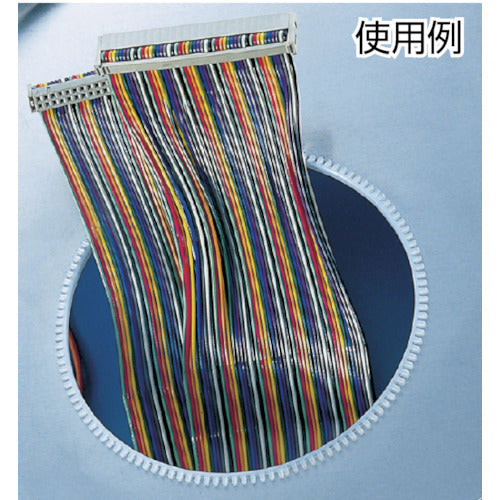

Catalog number: TG-012 Features: ● Useful for protecting wiring that passes through the cut part of the panel. ● Resistant to vibration and impact, excellent abrasion resistance, and excellent protection performance for electric wires. ● Easy to install by simply fitting it into the edge of the opening. ● Can be used for openings with large outer dimensions. ● Made of 6 nylon, it is flexible and can accommodate holes of any shape. Applications: ● For home appliances (washing machines, refrigerators, and other devices), office equipment, amusement equipment, semiconductor manufacturing equipment, electrical equipment such as distribution boards, construction machinery, large vehicles, automobiles, and other electrical, electronic, and mechanical equipment. Specifications: ● Color: Milky white ● Recommended panel thickness (mm): 1.2 ● Width (mm): 4 ● Height (mm): 4.1 ● Length (mm): 253 ● RoHS compliant ● For indoor use ● Applicable panel thickness: 1.2mm ● Operating temperature range: -40℃ to +85℃ Material/Finish: ● 6 nylon
