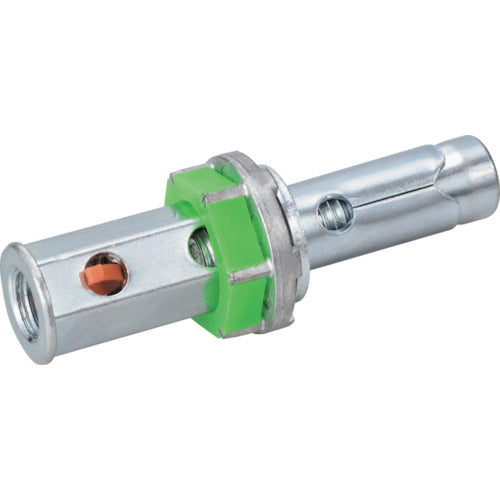

UNIKA Quick One TQR TQR-3025 TQR-3025 25 pieces

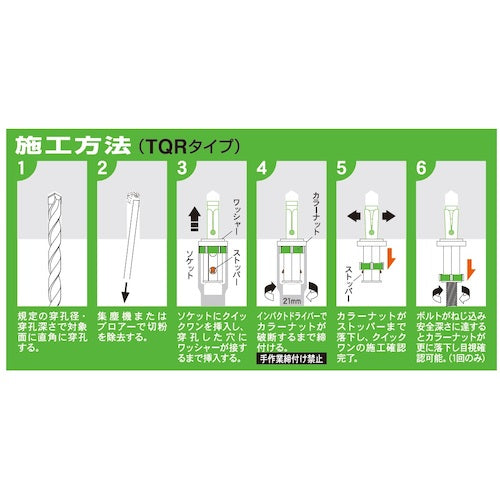

Catalogue number: TQR-3025 Features: ●The collar nut breaks and falls when the specified torque is reached, allowing you to confirm completion of installation. ●When the bolt has been screwed in to a safe depth, the collar nut falls further, allowing visual confirmation. ●Achieves both ease of anchor installation and installation quality. ●Provides reliable strength for attaching suspended objects. ●Expands in response to load, providing stable strength. Applications: ●For attaching suspended objects to concrete. Specifications: ●Screw size: 10 ●Screw length (mm): 25 ●Total length (mm): 45 ●Maximum tensile load (kN): 10.4 ●Effective embedment depth (mm): 25 ●Hexagonal high nut screw size: W3/8 ●Nut length (mm): 35 ●Outer diameter (mm): 12.0 ●Body length (mm): 45 ●Two-sided width dimension (mm): 21.0 ●Embedded depth (mm): 33 ●Counterbore diameter (mm): 12.5 ●Nut two-sided width (mm): 21.0 ●Tightening torque (N・m): 35 or more ●Number per box (pieces): 25 ●Body dimensions (mm) length: 45 ●Recommended impact driver specifications: 14.4V or more (tightening torque: 100Nm or more) ●Compatible socket specifications: Two-sided width 21mm / pocket depth 36mm or more Material / Finish: ●Steel ●Surface treatment: Trivalent chromate
