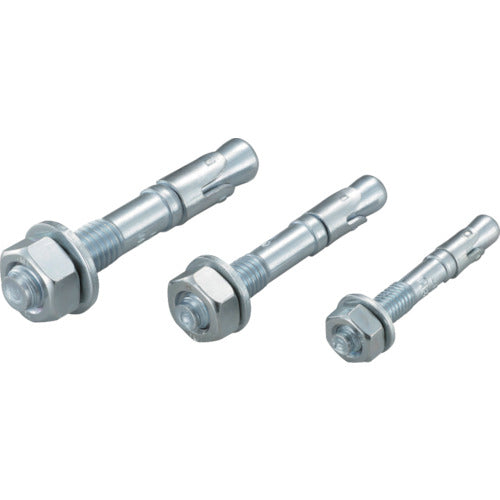

UNIKA Big One BG-1090 BG-1090 1 unit

Catalog number: BG-1090 Features: ● Installation by torque management and a large three-sided wedge provide reliable strength. ● Since the screw diameter and pilot hole diameter are the same, installation can be done from above the object to be attached. Applications: ● Electrical installation and piping work, heating and cooling duct work, elevator work, handrail installation, etc. Specifications: ● Screw designation: M10 ● Total length (mm): 90 ● Maximum tensile load (kN): 14.7 ● Embedded depth (mm): 52 ● Pilot hole diameter (mm): 10.0 ● Total length (mm): 90 ● Screw length (mm): 46.5 ● Maximum thickness (mm): 22 ● Minimum embedded depth: 52mm ● Screw diameter: M10 ● Pilot hole depth: 60mm or more ● Tightening torque (m): 30N ・ Material / Finish: ● Steel
