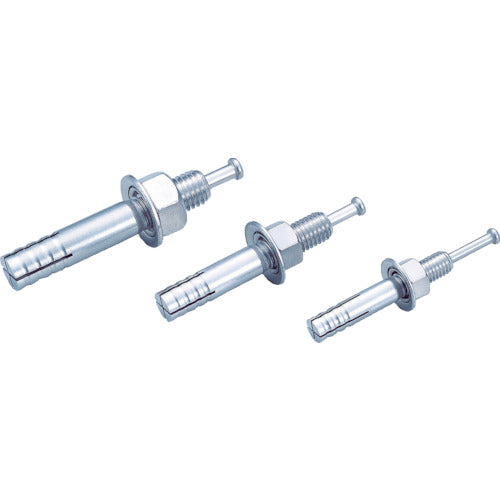

UNIKA Rooty Anchor SC-3060 SC-3060 50 pieces

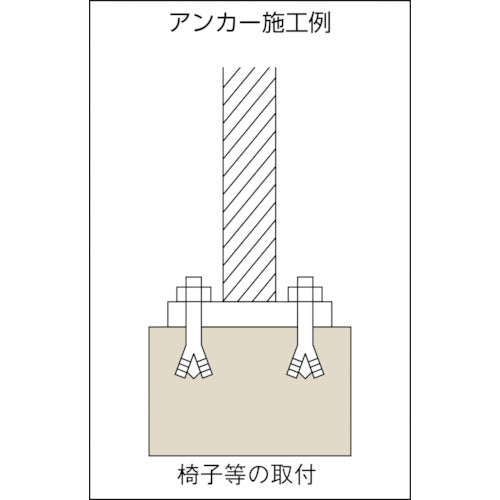

Catalog number: SC-3060 Features: ●Simple work of just driving in the pins ensures reliable installation. ●Made of all stainless steel, resistant to rust. ●Can be widely installed in humid places. ●Simple work of just driving in the pins ensures reliable installation. ●Just by looking at the pins, you can be sure that the pins have been driven in. Applications: ●Architectural, electrical, sanitation, heating and cooling construction, sign and chair installation, machine installation, etc. Specifications: ●Screw size: W3/8 ●Total length (mm): 60 ●Screw length (mm): 25 ●Maximum thickness of object to be attached (mm): 5 ●Pilot hole diameter (mm): 10.0 ●Maximum tensile load (kN): 14.0 ●Embedding depth (mm): 40 ●Boxed Material/Finish: ●Stainless steel Note: ●The maximum tensile load is the value when the concrete strength is Fc21N/[MM2].
