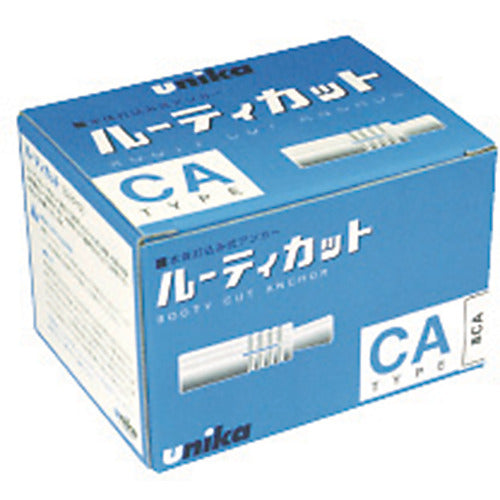

UNIKA Rooty Cut Anchor CA Type 258CA 258CA 150 Pieces

Catalogue number: 258CA Features: ●There are no protrusions on the concrete surface after application, making it possible to install hexagonal bolts, reinforcing bars, and hanging bolts. Applications: ●For concrete. ●Air conditioning work, sign installation work, interior and exterior work, electrical work, piping work, etc. Specifications: ●Screw size: W5/16 ●Outer diameter (mm): 12.0 ●Total length (mm): 35 ●Screw length (mm): 14 ●Drill diameter (mm): 12.5 ●Maximum tensile load (kN): 19.2 ●Boxed Material/Finish: ●Steel Note: ●The maximum tensile load is the value when the concrete strength is Fc21N/[MM2].
