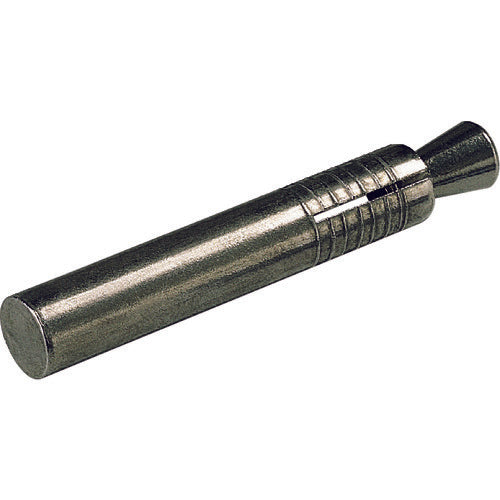

UNIKA Welded Anchor AS-1040 AS-1040 150 pieces

Catalogue number: AS-1040 Features: * A welding anchor that is hammered into the target object and attached by directly welding the hardware of the equipment. Uses: * For fastening sash window frames. Specifications: * Outer diameter (mm): 10 * Overall length (mm): 40 * Embedded depth (mm): 30 * Maximum tensile load (kN): 14.2 * Pilot hole diameter (mm): 10.5 * Drilling depth (mm): 32 * Boxed * Main unit is driven in Material/Finish: * Steel Note: * The maximum tensile load is the value when the concrete strength is Fc27N/[MM2].
