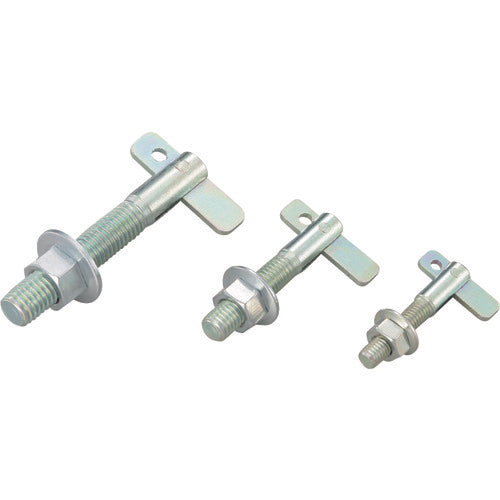

UNIKA T-Lock TL Type TL-1090 TL-1090 50 pieces

Catalogue number: TL-1090 Features: ●Since the body diameter and plate width are the same, drilling and anchoring can be done after the equipment is installed. Applications: ●For mounting metal fittings, equipment, handrails, etc. Specifications: ●Screw size: M10 ●Outer diameter (mm): 10.0 ●Total length (mm): 90 ●Screw length (mm): 66 ●Applicable plate thickness (mm): 14-65 ●Drilled hole diameter (mm): 11.0 ●Plate length (mm): 36 ●Tightening plate thickness (mm): 14-65 ●Required hollow section (mm): 38 ●Maximum tensile load (kN): 5.4 ●Length (mm): 90 ●Screw diameter: M10 ●Boxed Material/Finish: ●Steel
