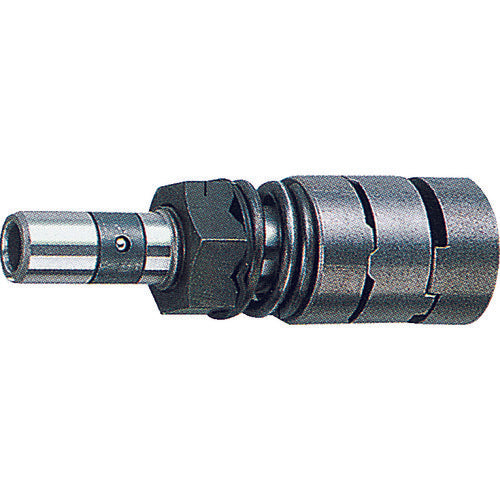

URYU Air Driver Cushion Clutch Screwdriver Bit Insertion 5mm Capable Screw Size 4mm Maximum Tightening Torque 2.5N・m US-3.5A 1 Unit

Catalog number: US-3.5A Features: ●The torque of the air motor is amplified in the reduction section, and the torque generated by the clutch engagement and impact action adjusted by the spring tightens the screw. ●There is little recoil due to the intermittent torque. ●When the tightening torque is reached by the reduction type, the air is cut off by the movement of the camshaft and operation is stopped. Applications: ●For building materials, furniture, and low-voltage related products. Specifications: ●Bit insertion port (mm): 5 ●Capable screw dimensions (mm): 4 ●Maximum tightening torque (N・m): 2.5 ●No-load rotation speed (min［［の−１］］): 2000 ●Air consumption (［［Ｍ３］］/min): 0.2 ●Hose attachment port: Rc1/8 ●Exhaust: Side ●Total length (mm): 196 ●Chuck type: Bit band type ●Air pressure used: 0.4MPa ●Start lever type Material/Finish: ●Iron ●Aluminum Caution: ●The tightening torque is an approximate value. The torque value changes depending on the conditions.
