VESSEL Impact Type Torque Control Air Driver GTS5TS Maximum Fastening Torque 9.8 GT-S5TS 1 Unit

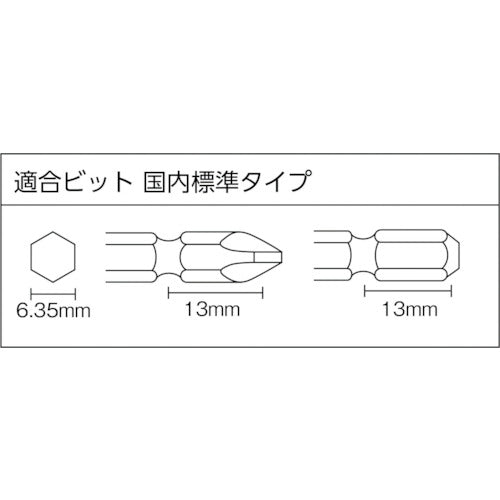

Catalog number: GT-S5TS Features: ●This is an impact type air driver with torque control that cuts off the air when the set torque is reached. ●Bit attachment part: H6.35 bit sleeve type. Applications: ●For use in a wide range of industrial fields, including the production, assembly, and disassembly of various electrical equipment, mechanical equipment, precision equipment, furniture, and wooden products that require tightening management. Specifications: ● Bit insertion port (mm): 6.35 ● Capable screw dimensions (mm): 4.5-6 ● Maximum tightening torque (N・m): 9.8 ● No-load speed (min［［の−１力］］): 6500 ● Air consumption (［［Ｍ３］］/min): 0.25 ● Hose attachment port: Rc1/4 ● Exhaust: Side ● Total length (mm): 292 ● Chuck type: Bit sleeve type ● Inner diameter of air hose used (mm): 6.35 ● No-load speed (rpm): 6500 ● Air pressure used: 0.6MPa ● Practical torque range: 3.9-9.8N・m Note: ● The tightening torque is an approximate value. Torque value will vary depending on the conditions.
