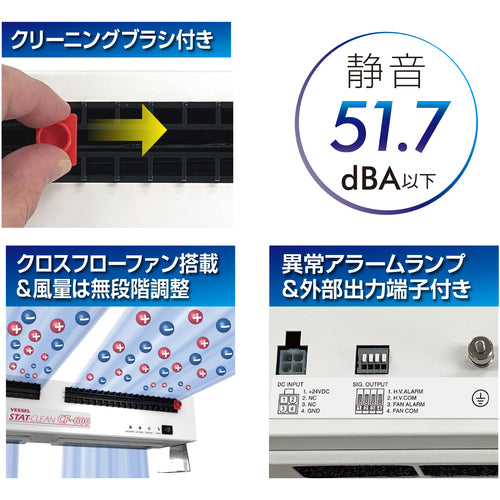

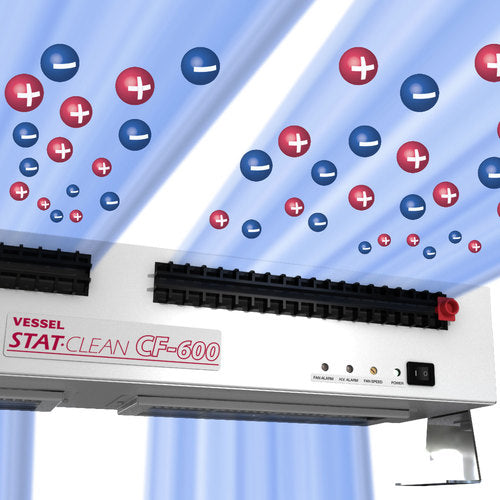

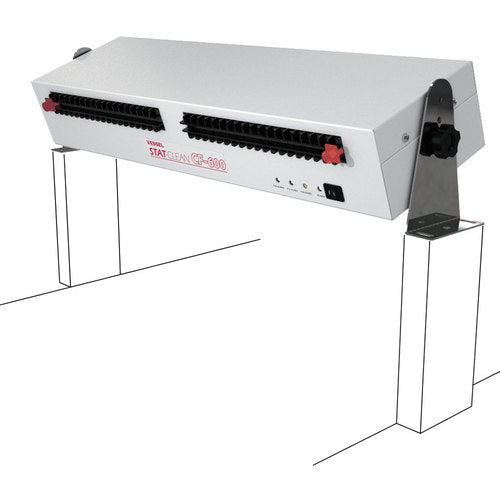

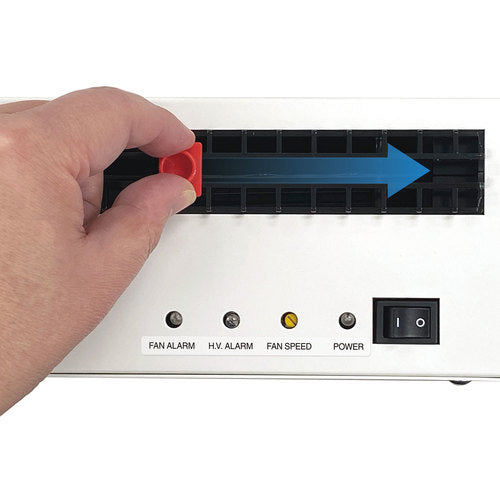

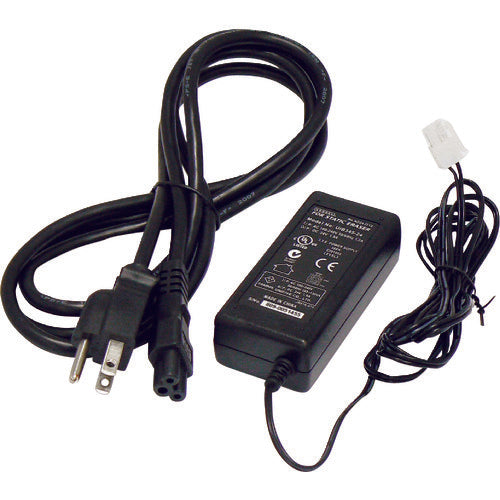

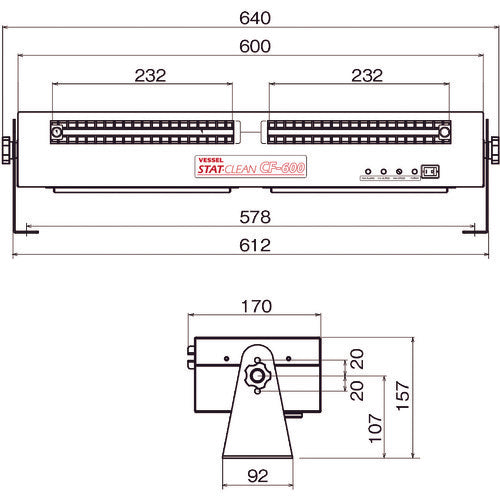

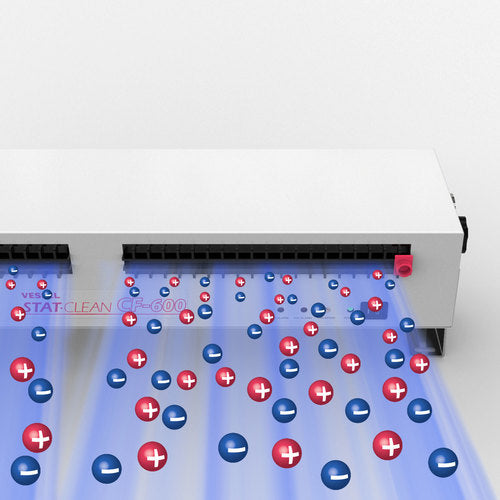

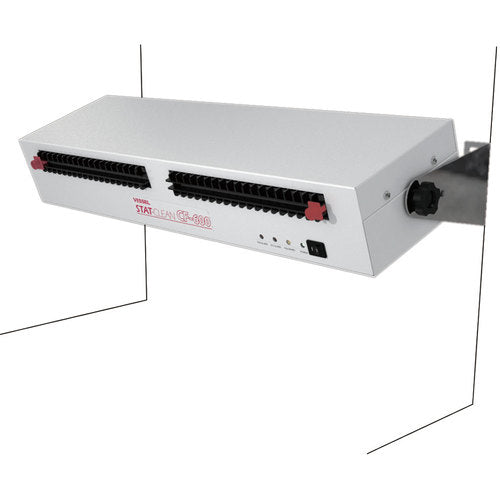

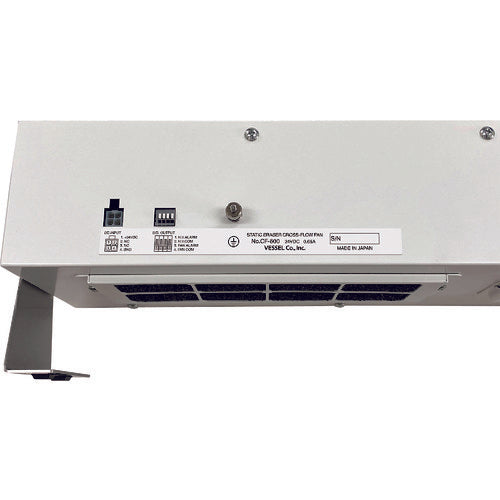

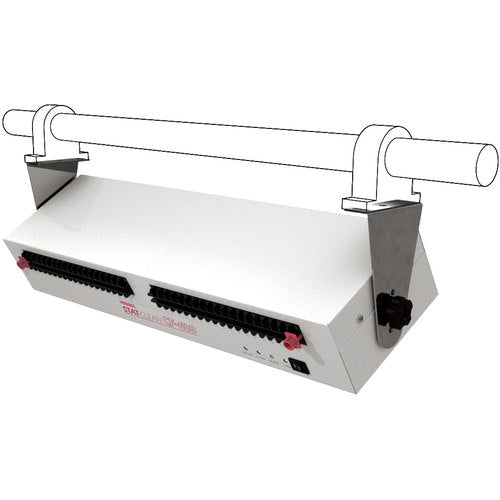

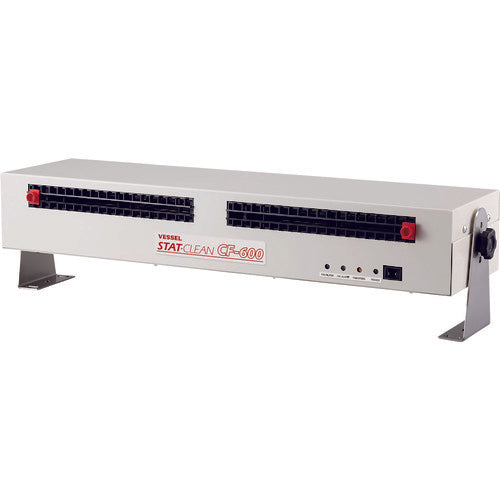

Catalogue number: CF-600 Features: ● Slim and wide 600 mm. ● Equipped with a cross-flow fan and air volume can be adjusted steplessly. ● Excellent ion balance within ±10V. ● Comes with a cleaning brush. ● Equipped with an abnormality alarm lamp and external output terminal. ● Comes with a stand that allows you to adjust the mounting angle and height. ● Can eliminate static electricity evenly, in a straight line, and over a wide area. Applications: ● For eliminating static electricity from workbenches, belt conveyor lines, and cell production lines. Specifications: ● Power supply (V): DC24 Ripple (pp) ±10% or less ● Ion balance: Within ±10V ● Maximum air volume (m3/min): 2.5 ● Ozone generation: 0.05ppm or less ● Width (mm): 640 ● Depth (mm): 170 ● Height (mm): 157 ● Static electricity removal method: AC high-frequency corona discharge type (applied voltage AC9.5kV pp) ● Maximum current consumption (mA): 900 ● Static electricity removal method: AC corona discharge type ● Current consumption: 900mA (max) ● Air volume: 2.5 m3 ● Usage distance: 150-900mm ● Usage temperature and humidity: 5-40°C 35-65%RH (but no freezing or condensation) ● Noise: 51.7dBA (distance 1m) ● Abnormality warning: Red LED when high voltage abnormality (HV ALARM) ● When fan is locked (FAN ALARM) Red LED●Input power supply (V): DC24V Ripple (pp) ±10% or less●Ion balance: Within ±10V (at the time of shipment, measurement distance 300mm) Material/Finish:●Main body: SPCC●Stand: SUS304●Discharge needle: Inconel alloy Set contents/Accessories:●Cleaning brushes: 2 pieces (already installed on the main body)●Power adapter: No. AD24-IT19●AC input cable 1.8m Caution:●Measured values are based on our measurement environment, and may vary depending on the usage environment. ●Please read the instruction manual carefully to use the product safely. ●Be careful of condensation. ●It may cause electric shock or malfunction. ●Never use in areas requiring explosion-proof construction.
