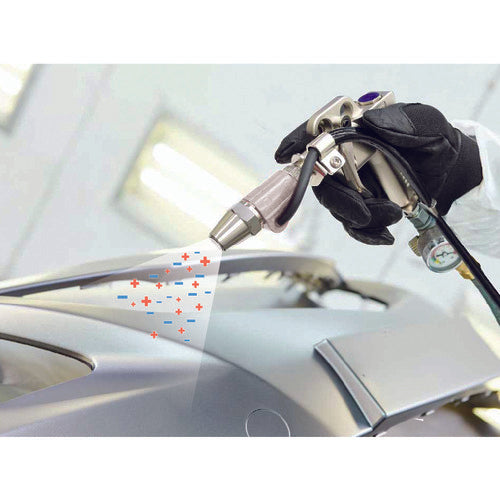

VESSEL Static electricity removal high power gun set No. HPG-1S HPG-1S 1 S

Catalog number: HPG-1S Features: ●For workpieces with a high amount of static electricity. ●The discharge needle (discharge electrode) is made of titanium, which is less prone to wear, and provides stable performance over the long term. ●Up to two guns can be used simultaneously with one power source. ●The high-voltage cable uses a high-voltage shielded cable that is less susceptible to external noise. ●The air gun body is made of robust die-cast aluminum, and has a large lever that is easy to pull and provides excellent workability. Applications: ●Pre-painting rooms, static elimination after molding, static elimination of pellets, etc. Specifications: ● Power supply (V): DC24±10% ● Air pressure (MPa): MAX0.7 ● Static electricity removal method: AC corona discharge method ● Power cord length (m): 1.8 ● Noise level (dBA): Approximately 95 (0.3MPa) ● Static electricity removal time: Approximately 0.5 seconds (0.3MPa, 150mm) ● Ambient temperature during use (℃): 0 to 40 (but no condensation or freezing) ● Ambient humidity during use (%): 10 to 90% RH (no condensation or freezing) ● Type: High-voltage static electricity removal device ● Applied voltage/frequency: AC3.5kV/50/60Hz (set/adjust on the GP-1 4kV side.) ● Installation distance (HPG-1): Approximately 50mm to 300mm ● Installation location: Indoors ● Protection circuit (HPG-1): High-voltage power supply unit GP-1 4kV has high voltage abnormality detection/automatic stop circuit●Air connection: Suitable for φ8mm tube, one-touch fitting●Air consumption: Approximately 100L/min, when input air pressure is 0.3MPa●Expected device life (approximately 10,000 hours. (8 hours x 250 days x 5 years)●RoHS compliant●Noise level (dB)●Current consumption (mA): 750●Ion balance: Adjustable on the GP-1 side (requires charge plate monitor or equivalent.)●Rated input voltage: DC24V±10%●Output variable range at no load (rms): AC output 4kV/DC output -150 to +550V●Secondary short circuit current: 5mA or less●Output monitor: 1/1000V±5% of output voltage is output to monitor terminal●Requires "GP-1-4KV high voltage power supply" and "AD24-GP power adapter" Material/Finish: Gun body: Aluminum die-casting, Discharge needle: Titanium, Nozzle body: Plastic (ABS resin), Nozzle tip: Stainless steel (SUS304), GP-1 4KV: Housing SPCC, white paint Set contents/Accessories: High power gun (HPG-1): 1 unit, High voltage unit (GP-1 4KV): 1 unit, Power adapter (AD-24GP): 1 unit, AC input cord... 1 unit, Instruction manual... 1 unit Caution: Please read the instruction manual carefully to use the product safely. Be careful of condensation. It may cause electric shock or breakdown. Do not use in areas requiring explosion-proof construction. This product requires earthing. If the earth is not securely connected, the product will not perform to its full potential. In addition, you may receive a slight electric shock when touching the casing. Do not turn on the high voltage power supply GP-1 until all work is completed. Use a power supply with an "OUTPUT 4kV" sticker attached.
