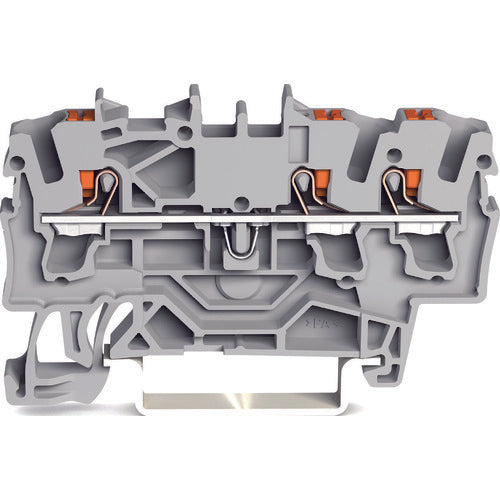

WAGO Push Button Operation Type Spring Type Junction Terminal Block 2202 Series 3-Wire Type 2202-1301-PK 1 Piece

Catalog number: 2202-1301-PK Features: ● Spring-type terminal block saves labor and space, does not loosen and does not require retightening, and has a push button for easy wiring. ● Solid wires and stranded wires with ferrules can be connected simply by inserting the wires. Applications: ● For connecting wires inside control panels and relay boxes. Specifications: ●Color: Gray ●Button color: Orange ●Length (mm): 5.2 ●Width (mm): 59.5 ●Height (mm): 33.0 ●Type: For spring-type relays ●Rating: 800V24A ●Compatible: Wire size: 0.25-2.5mm [squared] ●Compatible models: Wire size: 0.25-2.5mm [squared] ●Number of connected wires: 3 ●Wire size: 0.25-2.5 [mm2] ●Terminal thickness: 5.2mm ●Wire stripping length: 10-12mm ●3-wire system Material/Finish: ●66 Nylon ●Copper ●Stainless steel
