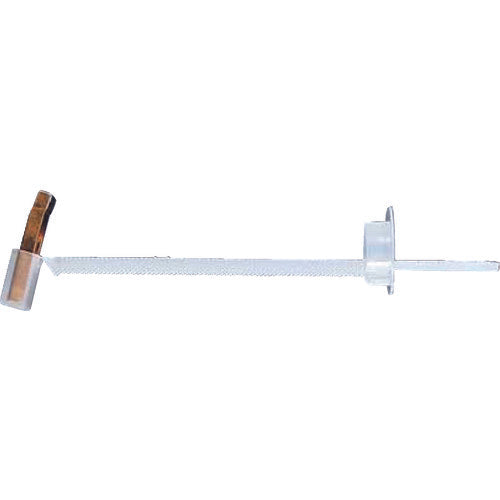

Catalog number: MN36500 Features: ●Uses a large plate nut that supports with a surface. ●Compatible with a wide range of plate thicknesses (10 to 65 mm). Applications: ●For ALC and hollow building materials. Specifications: ●Screw size: W3/8 ●Applicable plate thickness (mm): 10 to 65 ●Drill hole diameter (mm): 14 ●Nut length (mm): 26 ●Tightening plate thickness (mm): 10 to 65 ●Required hollow section (mm): 26 ●Maximum tensile load (kN): 7.84 ●Nut length: 27 mm ●Hollow section depth: 26 mm or more ●Applicable plate thickness: 10 to 65 mm ●Commercially available 3-minute bolts and flanged feet can be used ●Nut diameter: 3/8 Materials/Finish: ●Nut section: Steel ●Resin section: Polypropylene (PP)
