YOKE Anchor Point M18 4t 8-231-025 1pc

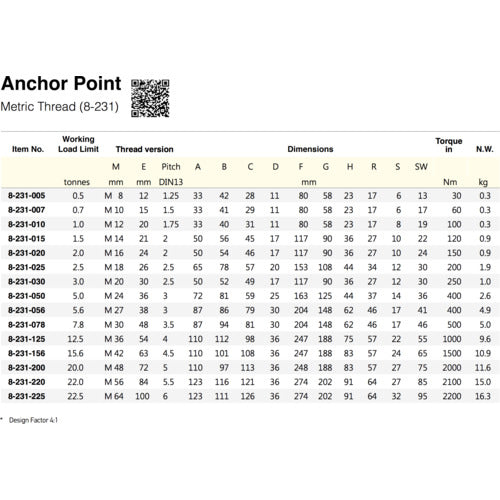

Catalog number: 8-231-025 Features: *The ring portion can move 180° relative to the mounting surface and rotate 360° in the axial direction. *Allows horizontal hanging and lifting operations that were impossible with JIS type eye bolts. Applications: *For moving and inverting large molds. *For moving and installing large concrete products. *For moving, transporting and installing heavy components, machinery, etc. Specifications: ●Basic load capacity (t): Vertical suspension: 4 / 90° horizontal suspension: 2 ●Bolt size: M18 ●Dimension (mm) A: 65 ●Dimension (mm) B: 78 ●Dimension (mm) C: 57 ●Dimension (mm) D: 20 ●Dimension (mm) E: 26 ●Dimension (mm) F: 153 ●Dimension (mm) G: 108 ●Dimension (mm) H: 44 ●Breaking load (kN): 65 ●Thread diameter: M18 ●Complies with EN1677-1, ASME B30.26 ●Tightening torque (N・m): 200 ●Complies with REACH regulations Material/Finish: ●Alloy steel Caution: ●Please install the bolts in accordance with the tightening torque indicated.
